Protecting Critical Surfaces: A New Approach to Handling Waveguides, Optics, and Precision Devices
As optical and photonic devices continue to evolve, manufacturers face a common challenge: how do you securely handle increasingly sensitive components without introducing risk to the surfaces that matter most?
From AR/VR waveguides and photonic components to precision glass and advanced semiconductor packages, many of today’s devices contain optical or active surfaces that are vulnerable to particles, residue, scratching, or handling damage. Traditional tray designs often require greater surface contact or device-specific pocketing, creating new challenges as product designs become more diverse.
To address this challenge, Gel-Pak developed the Edge Contact Tray, a handling platform designed to secure delicate devices while minimizing contact with critical surfaces. Instead of relying on broad surface contact, proprietary elastomer fingers engage only the perimeter of the device, helping reduce the risk of contamination or damage during handling and transport.
Why Surface Contact Matters
In many optical and photonics applications, even minor surface contamination can affect yield, performance, or downstream processing.
Manufacturers frequently need to:
- Move devices between process steps
- Inspect surfaces during production
- Transport components without damage
- Integrate parts into automated manufacturing workflows
The challenge is finding a way to retain the device securely while maintaining access to important surfaces. The Edge Contact Tray was designed specifically with that balance in mind. By contacting only the device edge, the tray helps keep optical and active surfaces accessible throughout the manufacturing process.
Designed for Flexibility
One of the biggest limitations of traditional handling solutions is the need for highly customized pockets tailored to a single device geometry.
The Edge Contact Tray uses a more flexible approach. The design can accommodate different device shapes and sizes without relying entirely on device-specific pocket designs, giving manufacturers greater flexibility as products evolve.
This makes the platform especially attractive for emerging technologies where designs are still changing and new variations are introduced regularly.
From Concept to Scalable Manufacturing
The value of a flexible handling platform became apparent during a recent customer program involving advanced AR waveguides.
As new waveguide geometries were introduced, each design variation required its own custom tray solution. This increased tooling costs, extended qualification cycles, and added operational complexity.
To address these challenges, Gel-Pak developed a universal handling platform that supported multiple device configurations while remaining compatible with automated manufacturing processes. The result was a scalable approach that reduced dependence on device-specific tray designs and provided a path toward future high-volume production.
The same engineering principles that drove that waveguide-handling solution are reflected in the Edge Contact Tray platform today: minimizing unnecessary surface contact while maintaining repeatable device positioning and manufacturing compatibility.
Key Advantages
The Edge Contact Tray was developed to provide several practical benefits for manufacturers:

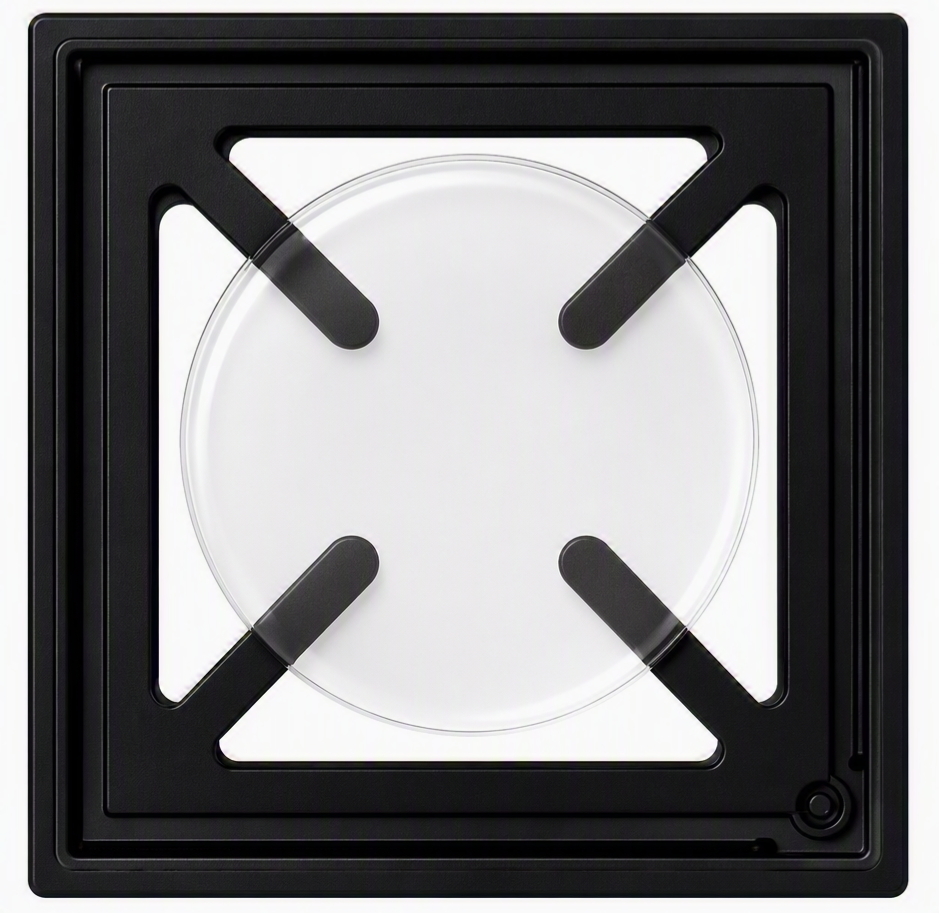

Edge-Only Contact
Proprietary elastomer fingers contact only the perimeter of the device, helping reduce interaction with critical surfaces.
Controlled Device Retention
The tray securely holds devices using proprietary tacky elastomer technology without hard clamping forces.
Inspection Access
Minimal surface coverage helps keep device areas visible and accessible for inspection and handling.
Flexible Device Support
Designed to accommodate a variety of device sizes and geometries without requiring fully customized pockets.
Scalable Manufacturing Platform

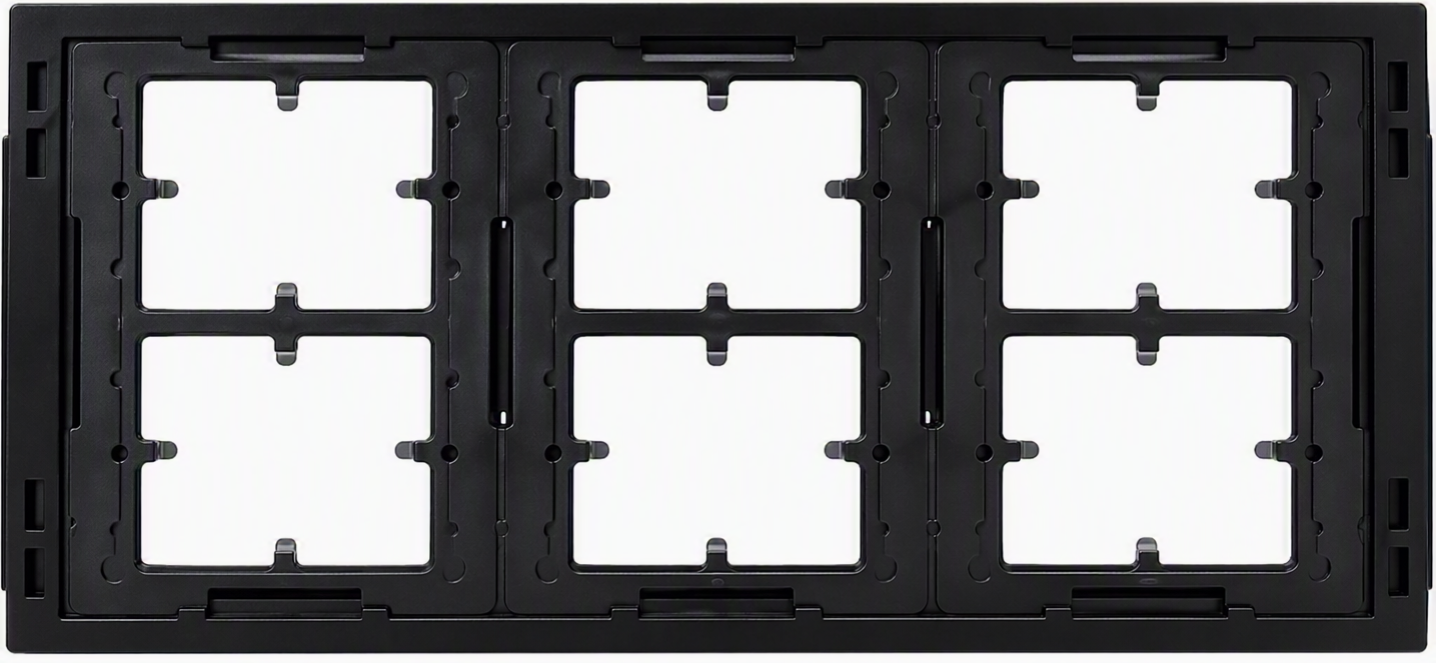

Multiple pockets can be incorporated into JEDEC-style tray formats, supporting automated and high-volume manufacturing workflows.
Applications
The Edge Contact Tray is well suited for applications requiring minimal device surface contact, including:
- AR/VR waveguides
- Optical components
- Photonics devices
- Precision glass
- Semiconductor devices
- Advanced packaging applications
Learn More
As device architectures become more complex, manufacturers need handling solutions that can protect sensitive surfaces while supporting efficient production workflows.
The Edge Contact Tray represents a new approach to device handling, combining edge-only contact, flexible device support, and a scalable path to automation.
Want to see the concept in action? Explore our Edge Contact Tray product page and read our waveguide handling case study to learn how this approach helped solve real-world manufacturing challenges for advanced optical devices.
