How Secure Device Handling Enables Advanced Packaging and Reduces Complexity

As semiconductor devices evolve toward chiplets, heterogeneous integration, and 3D architectures, the industry is facing a new reality: back-end processes are no longer simple support functions. They are now critical to yield, performance, and time-to-market.

Advanced packaging delivers unprecedented performance gains, but it also introduces a new layer of mechanical, logistical, and process complexity. At the center of this challenge lies one often overlooked question:

How do you safely handle increasingly fragile, high-value devices at every step of the process?

The Hidden Challenge in Advanced Packaging

In traditional semiconductor flows, device handling was relatively straightforward. Devices were smaller, more robust, and able to tolerate minor movement or contact.

That’s no longer the case.

Today’s devices are:

  • Thinner and more fragile
  • Higher in value per die
  • More sensitive to contamination and mechanical stress
  • Integrated into complex multi-die assemblies

Even slight movement during shipping, staging, or processing can lead to:

  • Scratches or micro-cracks
  • Particle contamination
  • Misalignment in downstream processes
  • Yield loss and costly rework

As packaging complexity increases, handling risk scales right along with it.

One of the most effective ways to reduce back-end complexity is deceptively simple:

Eliminate movement.

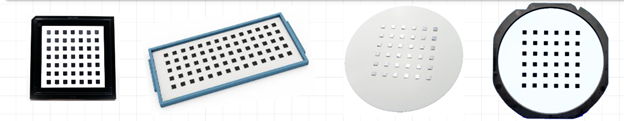

Gel-Pak’s elastomer-based carriers are designed to securely immobilize devices without mechanical clamping or custom pocketing, enabling:

  • Zero device movement during transport and handling
  • Gentle, non-damaging contact with delicate surfaces
  • Consistent positioning for automated pick-and-place systems

By stabilizing devices at every step, manufacturers can reduce the need for:

  • Complex fixturing
  • Custom tray tooling
  • Repositioning or rework steps

The result is simpler workflows and higher overall process reliability.

Enabling Flexibility in a High-Mix Environment

Advanced packaging introduces a high-mix, low-volume manufacturing reality:

  • Multiple die sizes
  • Different materials and geometries
  • Rapid design iteration cycles

Traditional handling solutions—such as custom pocketed trays—can slow innovation due to:

  • Long tooling lead times
  • Limited flexibility
  • Higher costs when designs change

Gel-Pak carriers allow manufacturers to:

  • Handle multiple device sizes on a single platform
  • Eliminate the need for custom tray development
  • Accelerate both prototyping and production ramps

This flexibility is essential for keeping pace with the rapid evolution of chiplet-based architectures.

Supporting Automation and Yield Optimization

As highlighted in recent industry discussions, automation is becoming central to managing back-end complexity. But automation only works when devices are presented consistently and safely.

Secure handling enables:

  • Repeatable pick-and-place accuracy
  • Fewer mis-picks and alignment errors
  • Improved inspection reliability
  • Reduced risk of damage during automated processes

In short, you can’t automate instability. Device immobilization is foundational to effective automation.

Protecting Yield in High-Value Applications

In advanced packaging, the cost of failure is significantly higher:

  • A single damaged die can compromise an entire multi-chip module
  • Yield losses compound across complex assembly steps
  • Scrap and rework can quickly erode margins

By ensuring devices remain protected throughout:

  • Shipping
  • Storage
  • Staging
  • Processing

Gel-Pak solutions help manufacturers maintain low defect rates, preserve device integrity, and maximize overall yield.

Cleanliness and Contamination Control

As device geometries shrink and integration increases, contamination control becomes even more critical.

Gel-Pak materials are engineered for:

  • Low particulate generation
  • Cleanroom compatibility
  • Secure retention without residue transfer

This helps reduce foreign particle defects, minimize cleaning steps, and lower process variability—further simplifying already complex manufacturing flows.

From Complexity to Control

Advanced packaging is pushing the semiconductor industry into new territory, where mechanical precision, material science, and process integration must work together seamlessly.

Secure device handling may seem like a small piece of the puzzle, but it is a critical enabler.

By:

  • Eliminating movement
  • Increasing flexibility
  • Supporting automation
  • Protecting yield

Gel-Pak helps transform handling from a source of risk and complexity into a point of control and efficiency.

Final Thought

As the industry continues to innovate, the companies that succeed will be the ones that simplify wherever possible.

Sometimes, that starts with something as fundamental as ensuring your devices stay exactly where they should be—secure, protected, and ready for the next step.
